X-P P8 Universal nails

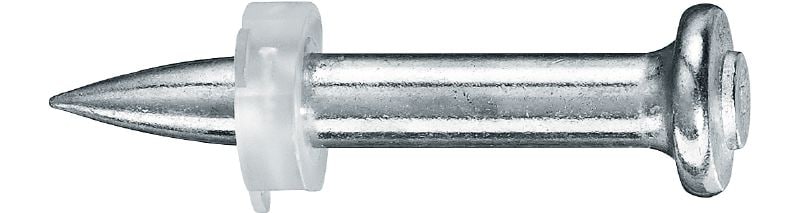

Concrete nail X-P 27 P8 #2150367
Ultimate-performance single nail for fastening to concrete and other base materials using powder-actuated tools
- Base materials: Concrete (soft), Concrete (tough), Masonry (solid limestone brick)
- Minimum thickness of base material (concrete): 80 mm
- Corrosion protection: Galvanised zinc coated <20 µm
ultimate
Customers also searched for DX nails, concrete, steel or Powder-actuated fastening tool.
Choose options
Fastener shank length
- 27 mm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
100
Discounted net
KWD 25.400
KWD 0.250 / 1 each
Technical Data
Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Washer size
8 mm
Point type
Long conical tip
Approvals
ICC-ES
For use with (tools)
DX 2, DX 351, DX 351 M/E, DX 36, DX 460 F8, DX 462 F8, DX 5 F8
Product class
Ultimate
Documents
Features & Applications
Features
- Designed for fastening on tough concrete (tested and approved for 8000 psi concrete, up to 1" embedment) and steel
- Long conical nail tip designed for best drivability in tough concrete
- Highest hardness (59 HRC) for best penetration in tough concrete
- Provides effective embedment depths of 3/4", 1", 1 1/4" and 1 1/2" when used with tracks up to 14 ga thick
- Highest load performance on tough concrete
Applications
- Fastening to soft or tough concrete and steel
- Fastening metal track for plasterboard/dry lining to concrete
- Fastening wall ties
- Fastening wood to concrete
- Setting up formwork and safety barriers
