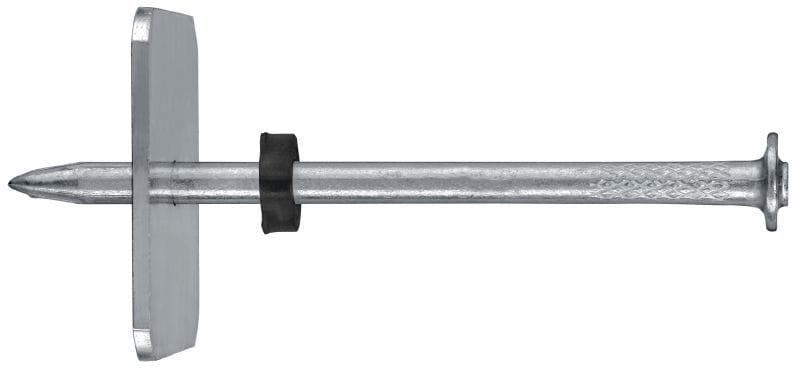

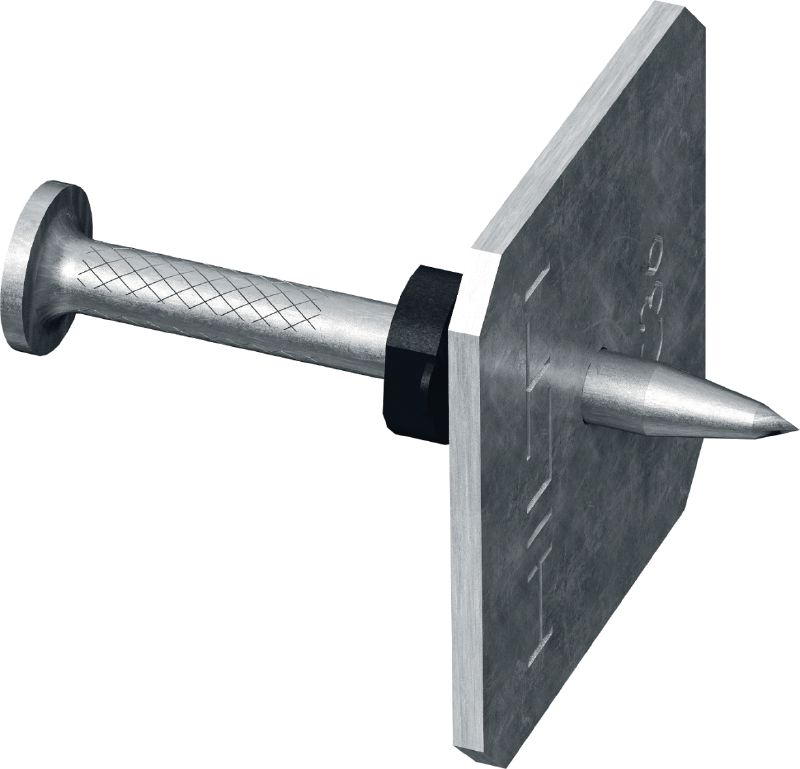

X-C P8S Concrete nails with washer
Premium single nail with steel washer for fastening to concrete using powder-actuated tools
- Base materials: Concrete (soft), Masonry (solid limestone brick)
- Minimum thickness of base material (concrete): 80 mm
- Corrosion protection: Galvanised zinc coated <20 µm
Customers also searched for concrete nails, nails for direct fasening, drywall track, nails or direct fastening.
Technical Data
Base materials
Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
3.5 mm
Point type
Cut point
Approvals
ICC-ES
For use with (tools)
DX 2, DX 351, DX 5, DX 6
Documents
Features & Applications
Features
- Fastener with pre-mounted washer providing a larger bearing surface for improved clamping of fastened material
- Pre-mounted steel washer offers maximum pull-over resistance for fastening soft materials to concrete
- Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
- Best suited for fastening to concrete with a hardness of up to 6,000 psi
Applications
- Fastening wood to concrete, e.g. 2x4s, plywood, wood battens, formwork, kicker plates
- Attaching a variety of materials to masonry block and concrete
- Fastening wood profiles to concrete
- Fastening termination bars to secure waterproofing membrane or moisture barriers
- Wood to concrete, e.g. formwork boards, safety barriers, etc.
For approval or certificate information, please see individual items.
