X-NPH2 Metal deck fasteners

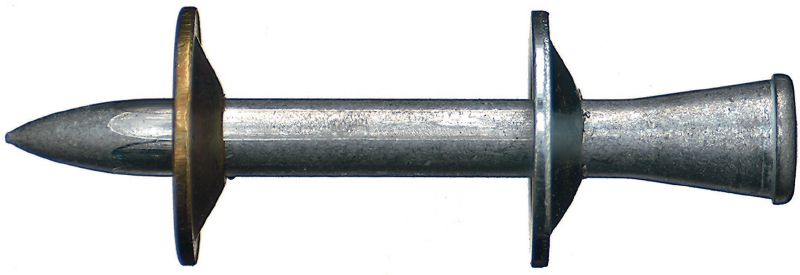

Sheet metal nail NPH2-42L15 #40711

Single nails for fastening metal decks to concrete with powder-actuated nailers

  • Base materials: Concrete
  • Minimum thickness of base material (concrete): 160 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
ultimate

Choose options

Fastener shank length
  • 15 mm
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Base materials
Concrete
Minimum thickness of base material (concrete)
160 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
BUtgb, SOCOTEC
For use with (tools)
DX 76, DX 76 PTR
Product class
Ultimate

Documents

Features & Applications

Features

  • For the DX-Kwik technique – fastenings are driven into a small pre-drilled hole, increasing the stick rate to almost 100% while protecting the base material
  • Consistent fastening quality and fast installation

Applications

  • Fastening roofing and siding metal sheet profiles to concrete (predrill with a TX-C 5/23 stop drill bit)
