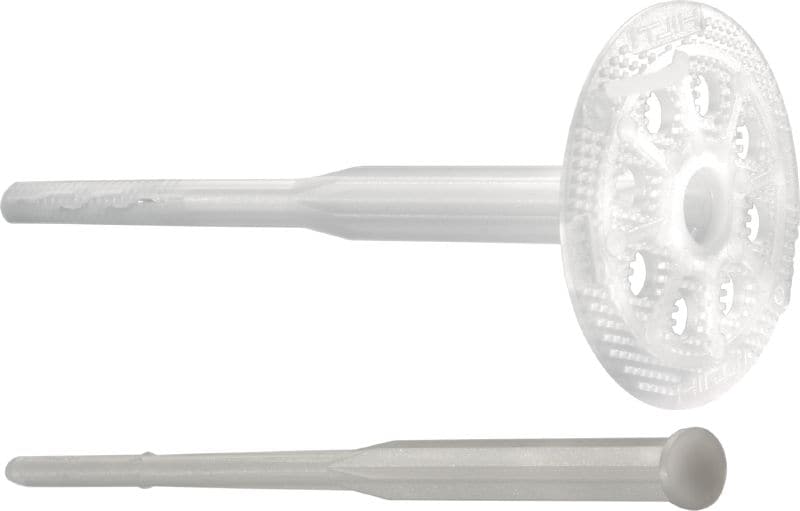

IZ Insulation fastener
High-performance insulation anchor with plug for concrete and masonry
- Base materials: Masonry (solid), Masonry (hollow), Concrete (tough)
- Working principle: Impact anchor
- Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Choose options
Insulation material thickness fastened - max.
- 50 mm
- 70 mm
- 90 mm
- 110 mm
- 170 mm
Drill bit diameter
- 8 mm
Anchor length
- 90 mm
- 110 mm
- 130 mm
- 150 mm
- 210 mm
Pack size
- 100 pc
- 150 pc
- 200 pc
- 250 pc
Quantity
Packs
Total Pieces
1
Discounted net
From KWD 66.600
Technical Data
Base materials
Masonry (solid), Masonry (hollow), Concrete (tough)
Working principle
Impact anchor
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Environmental conditions
Outdoor (more than 1km to coast)
Type of fastening
Through-fastening
Material composition
Plastic, Polyamide
Material, corrosion
Plastic
Documents
Features & Applications
Features
- Can be quickly set in place thanks to simple impact installation
- Can be used on all conventional base materials
- Anchor hole does not need to be cleaned
- Anchor plate does not have to be subsequently "blackened" when used with black-coated insulating material
- With glass-fibre pin for greatly reduced thermal bridging
Applications
- Fastening insulating materials, e.g. behind curtain wall cladding and for basement insulation
For approval or certificate information, please see individual items.
