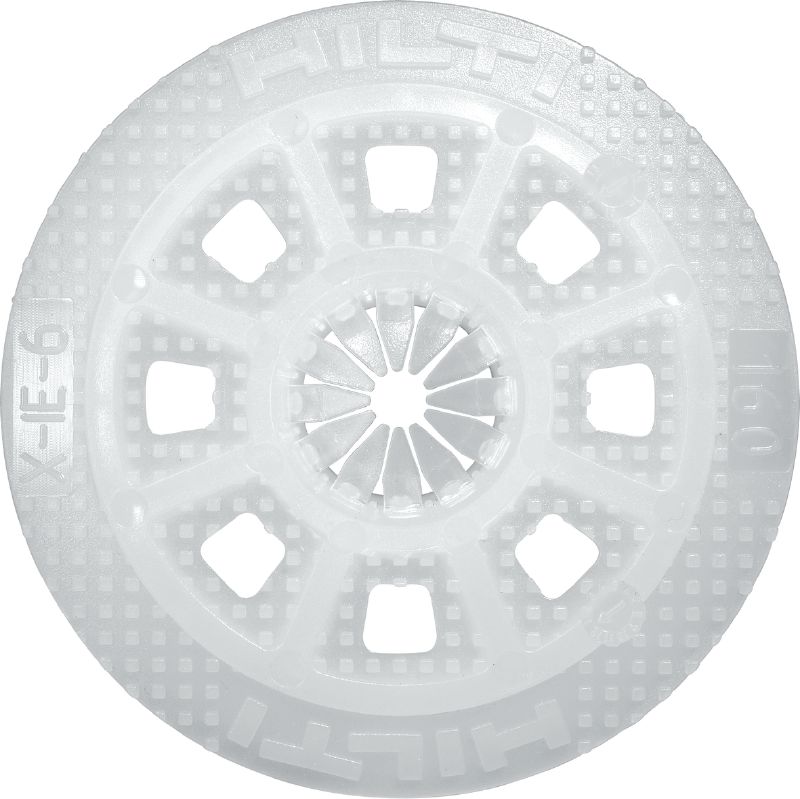

X-IE 6 Insulation fastener

Insulation fastener

Application: Rigid Board Insulation, Mineral Wool Insulation
Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)

ultimate

Customers also searched for insulation fastener, insulating ceilings, insulating panels or direct fastening.

Insulation thickness

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From KWD 34.300

Technical Data

Application

Rigid Board Insulation, Mineral Wool Insulation

Insulation material

Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)

Base materials

Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)

Approvals

ITB

For use with (tools)

DX-IE

Minimum thickness of base material (concrete)

80 mm

Minimum thickness of base material (steel)

4 mm

Material

High-density polyethylene (HDPE), Halogen-free, Silicone-free

Colour

Colourless

Product class

Ultimate

Extremely quick insulation fastening system – up to five times faster than conventional methods
High-strength AL nail (58 HRC hardness): low failure rates
Collapsible section: no crushing of the insulation material
Excellent thermal efficiency in a one-step solution – no cap is required

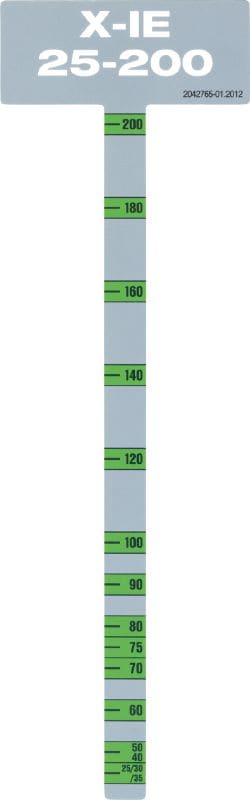

Gauge included for easy visual control of correct fastener driving depth
