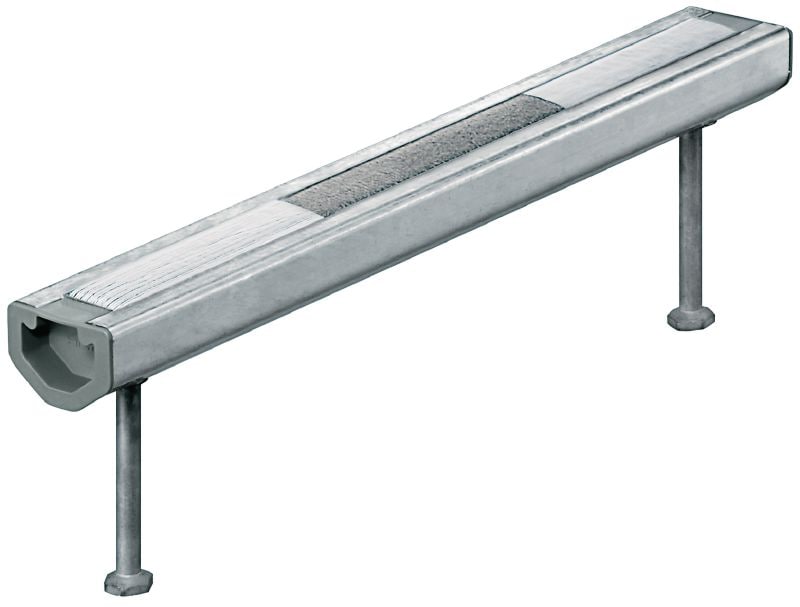

Cast-in anchor channels in standard sizes and lengths with the regulatory approvals needed for virtually any challenging project

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanised
  • Channel profile: HAC-60, HAC-50
  • PROFIS software: Yes

Choose options

Channel profile
  • HAC-50
  • HAC-60, HAC-50
Length
  • 350 mm
  • 450 mm
  • 550 mm
  • 5800 mm
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanised
Channel profile
HAC-60, HAC-50
PROFIS software
Yes

Documents

Features & Applications

Features

  • High-performance solution – designed for challenging loads and design parameters
  • Approved for static, fatigue, seismic (ICC-ESR 3520) and fire loading
  • Customisable – options available for virtually any specification
  • Low-energy manufacturing – cast-in anchor channels can contribute to environmental certification of construction projects
  • High-precision manufacturing

Applications

  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guiderails, sliding doors or divider beams)
  • Projects with high environmental standards
  • Building appliances (e.g. heating, ventilation)
  • Power plants

For approval or certificate information, please see individual items.
