MFT-FOX VI S bracket

Bracket MFT-FOX VI 60 S 11 #2305883

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003219_v1 (221953)

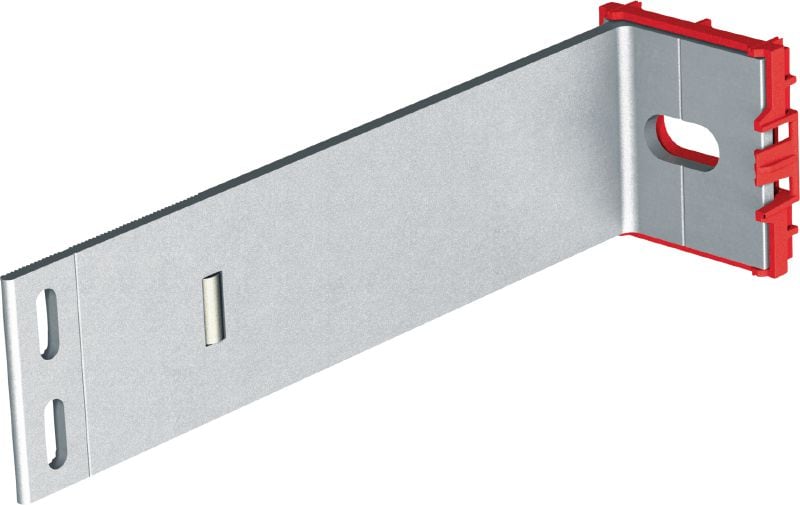

Versatile wall bracket for installing rainscreen façade substructures

  • Length: 60 mm
  • Hole diameter - D: 11 mm
  • Material composition: Aluminium EN AW-6063 T66

Choose options

Length
  • 60 mm
Hole diameter - D
  • 11 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Length
60 mm
Hole diameter - D
11 mm
Material composition
Aluminium EN AW-6063 T66
Insulation material
Polypropylene
Thickness insulation material
6 mm
Width
53 mm
Height
55 mm

Documents

Approval document
Sustainability Documentation
Operating Instruction
pdf ETA-22-0816 EN, English [ 2.8 MB ]

Features & Applications

Features

  • Labour saving – optimised bracket design and innovative fastening solutions help to lower your total cost of installation
  • Easier installation – optimised helping hand and clearer markings to simplify bracket fastening and rail alignment

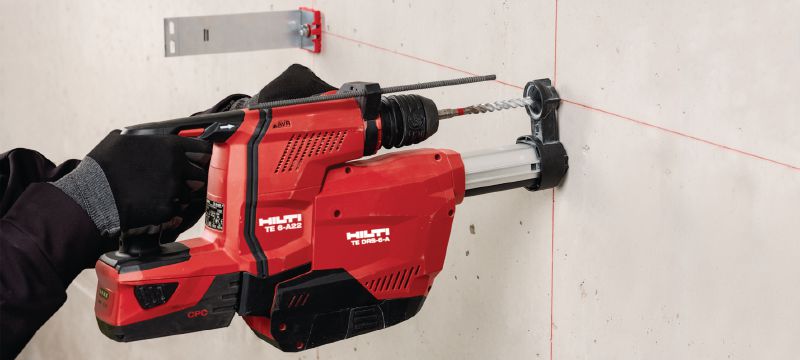

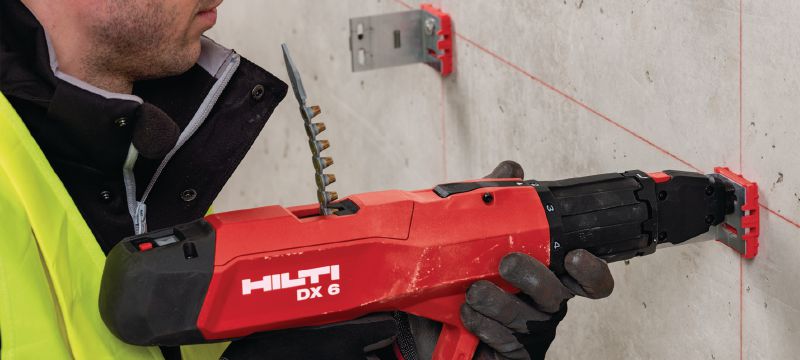

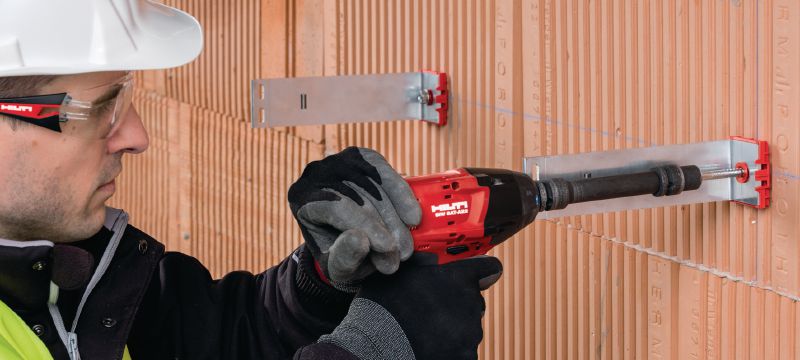

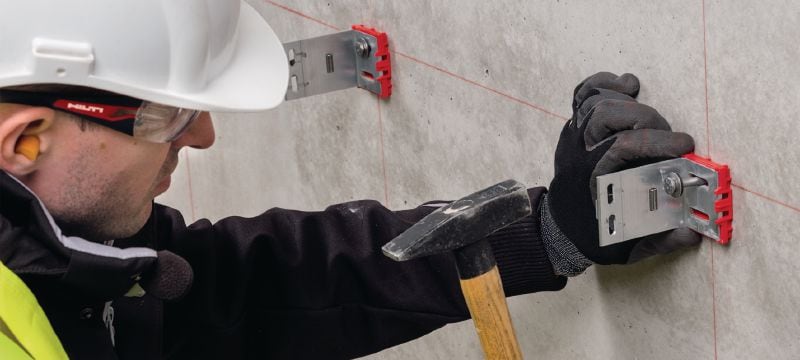

  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
  • Engineering support available – contact your local Hilti team for project-specific advice on optimising the ventilated façade substructure

Applications

  • Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood
  • Mounting façade substructures on the primary structure (helping hand bracket)
  • Installing vertical support rails
  • Suitable for all façade cladding
